Flexible Piping Solutions
From SS corrugated hoses to bellows, PTFE hoses and hydraulic fittings — engineered for demanding industrial applications. Choose a category to explore.

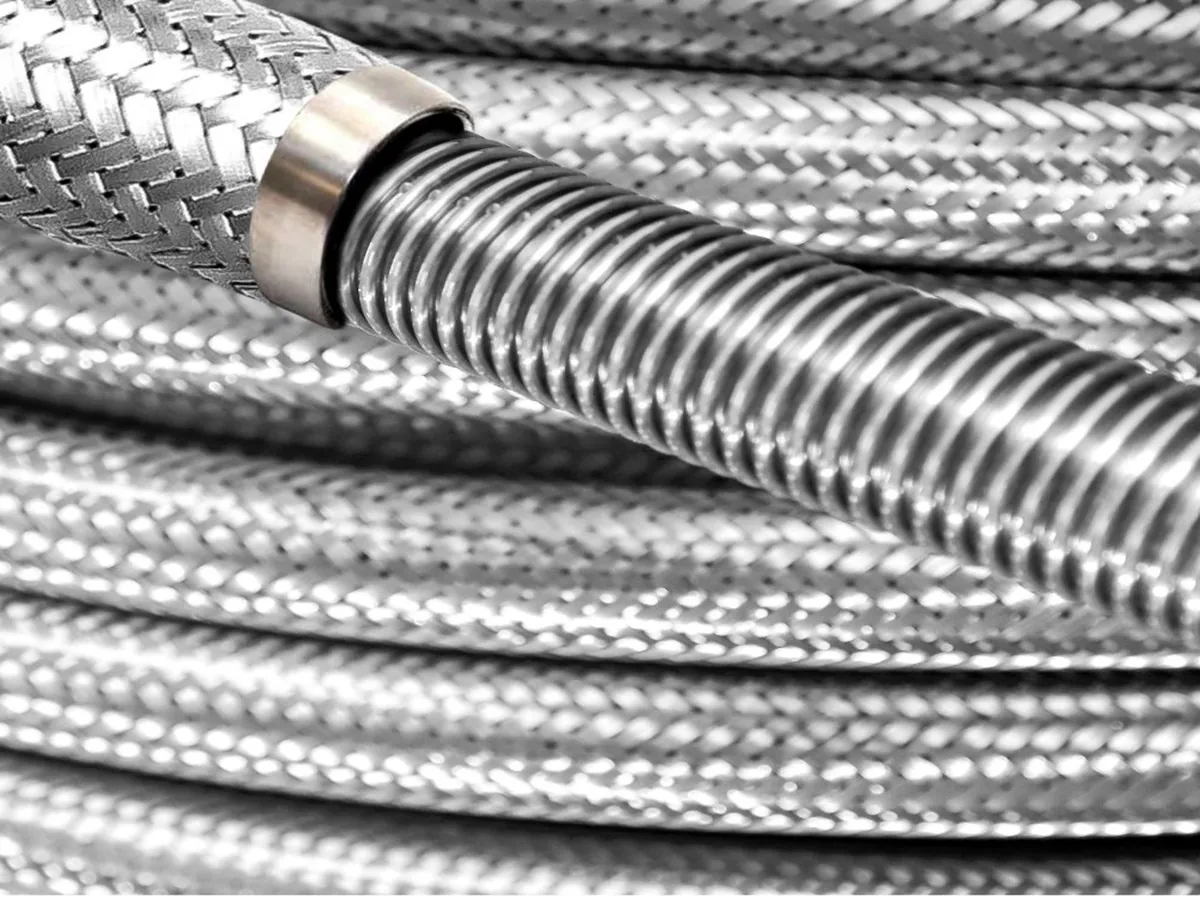

Stainless Steel Corrugated Hose
Helical & annular, SS braided. Operating range −270°C to +700°C in SS 321, sizes 1/4" to 12".
View range
Stainless Steel Hose Assemblies
Custom-built assemblies with a full range of end fittings — flanged, threaded, tri-clamp and more.
View range

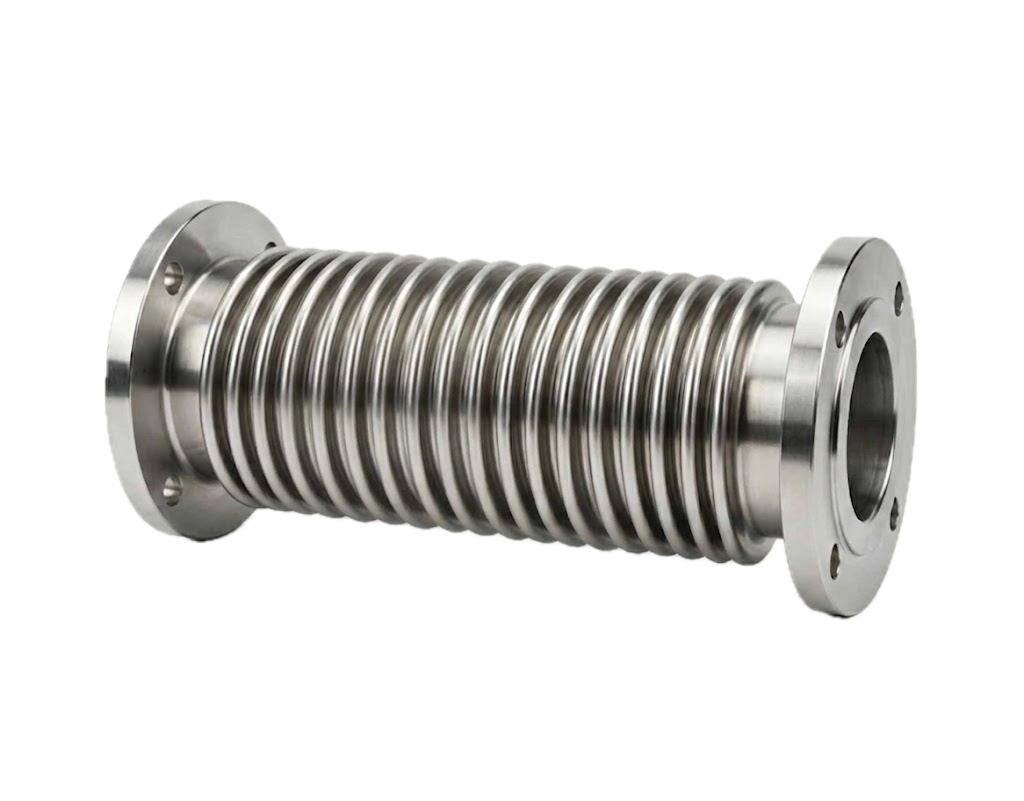

Stainless Steel Bellows
Expansion joints that absorb thermal movement, vibration and misalignment in piping systems.
View range

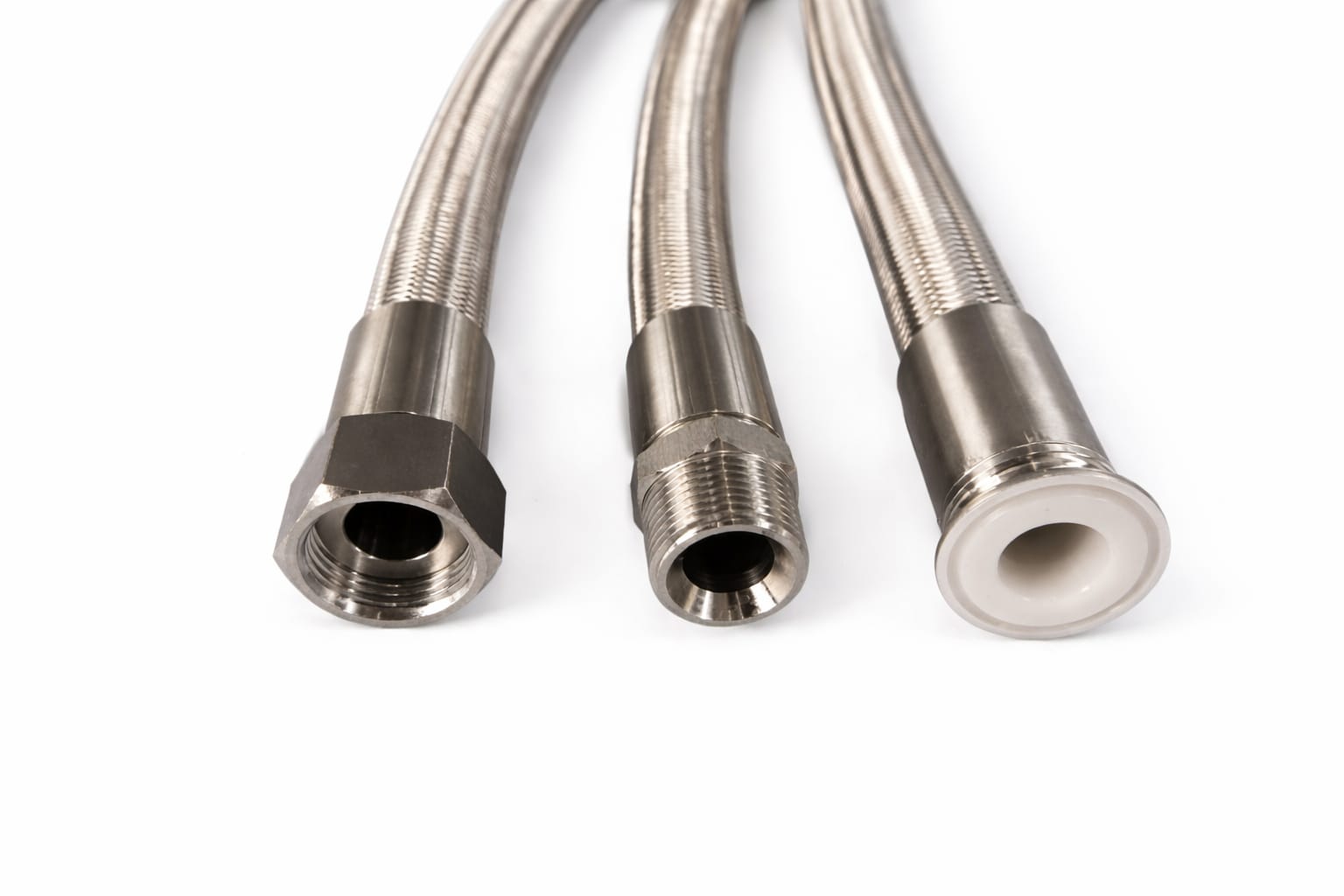

PTFE Hoses
Smooth-bore & corrugated PTFE with SS braiding. Chemical-resistant, −65°C to +260°C.
View range

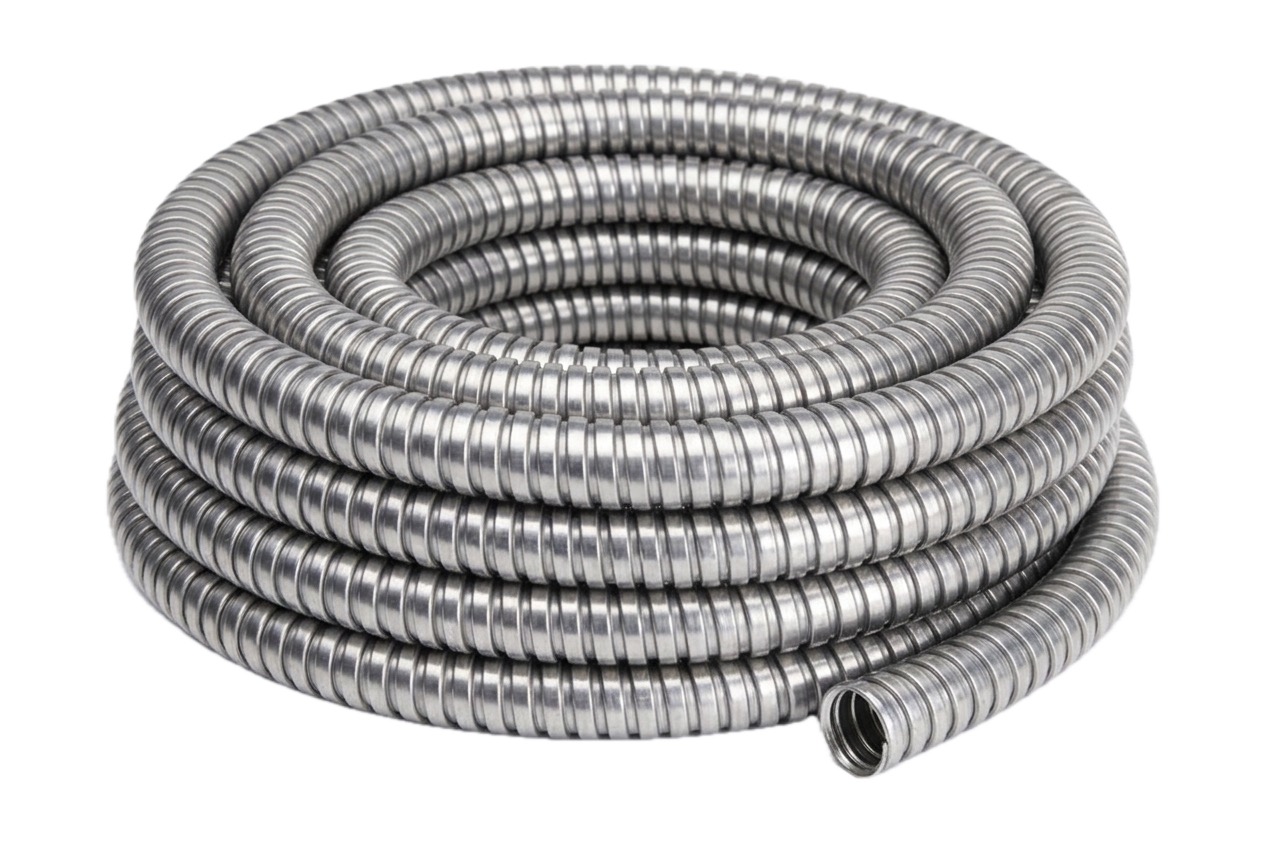

Interlock Hoses
Rugged interlocked-strip hoses for mechanical protection, ducting and high-temperature duty.
View range

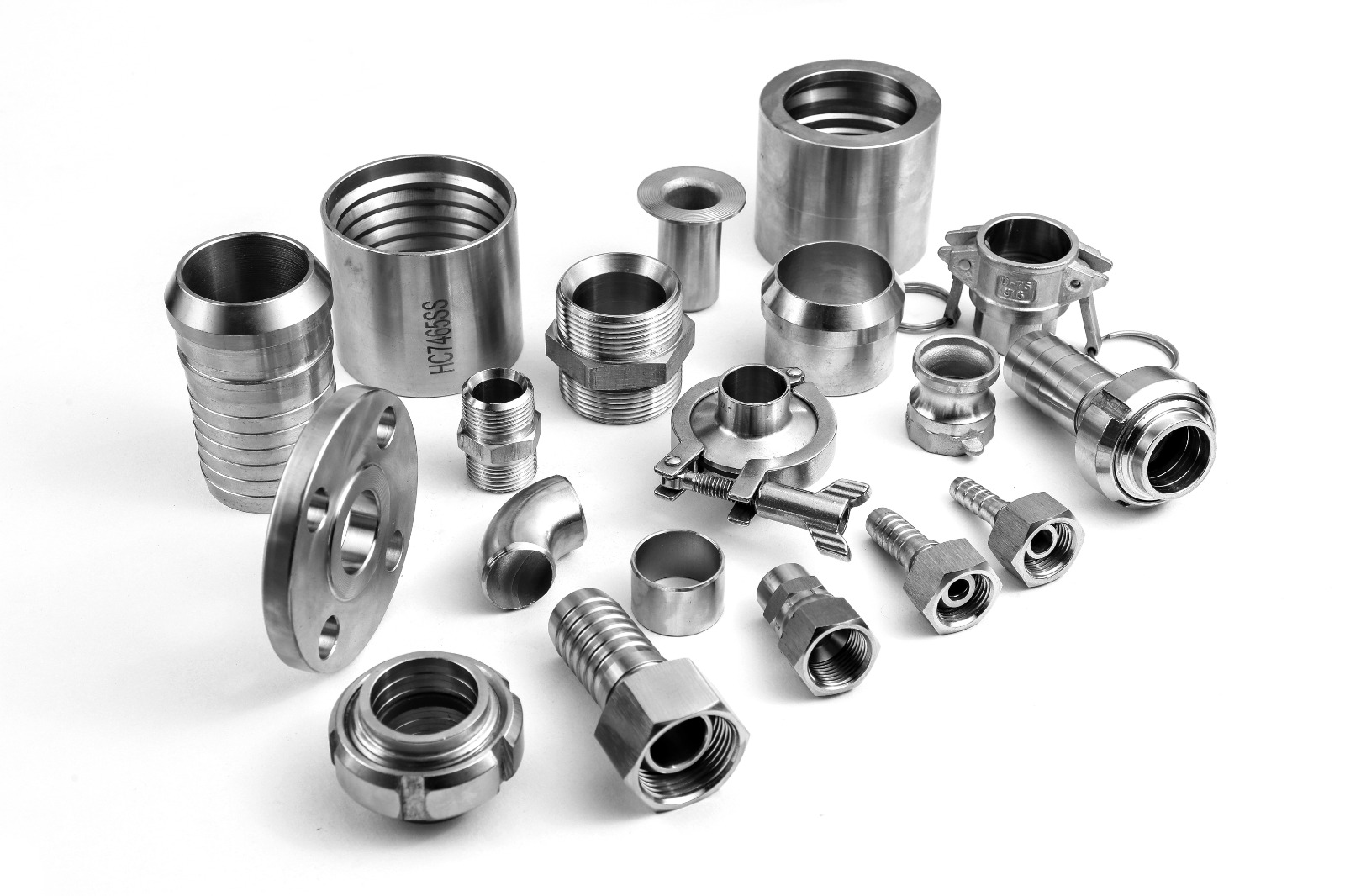

Stainless Steel Hydraulic Fittings
Nuts, nipples, caps, bends and adaptors machined from SS304 for corrosion-resistant assemblies.
View rangeWhat we can build
The envelope across the whole range, so you can tell in one screen whether we cover your application.
Sizes
1/4" to 12" bore (6–300 mm) across the corrugated range, supplied unbraided, single-braided or double-braided. Assemblies are cut and fitted to your length rather than sold in fixed sizes.
Materials
SS 304, 304L, 316, 316L, 321 and 321L — hose, braid and end fittings all available in the same grades. 304 for clean air, water and steam; 316L wherever chlorides are present; 321 for sustained high temperature. PTFE lining is available where the media attacks stainless.
Temperature
−270 °C to +700 °C. The upper figure applies to SS 321; 304, 304L and 316L are rated to +425 °C. Working pressure is derated above 20 °C using the ISO 10380 correction factors.
Pressure
Set by bore, series and braid count rather than a single headline figure. Every assembly is hydrostatically tested to 1.5× its rated working pressure and issued a certificate against its own serial number.
End fittings
Flanges, threaded nipples, union nuts, camlock couplings and adaptors, TIG-welded and tested as a complete assembly. Fittings are machined to match the hose they serve.
Quality
Production audited to ISO 9001:2015. Raw material bought against mill certificates, welds visually inspected as standard and dye-penetrant tested for critical service.
Not sure which series fits? Read how to specify a hose — five decisions in order — or check a pressure rating against your operating temperature.
