All SS Grades · CNC Precision

Stainless Steel Hydraulic Hose Fittings

CNC-machined hose end fittings in SS 304 / 304L / 316 / 316L / 321 / 321L, cut to any standard thread — BSP, NPT, JIC 37°, ORB, ORFS and metric — as male adaptors, female nuts, nipples, caps and 90° bends.

Request a Quote View Specifications

ISO 9001:2015 Certified Exporting worldwide Test certificates per lot

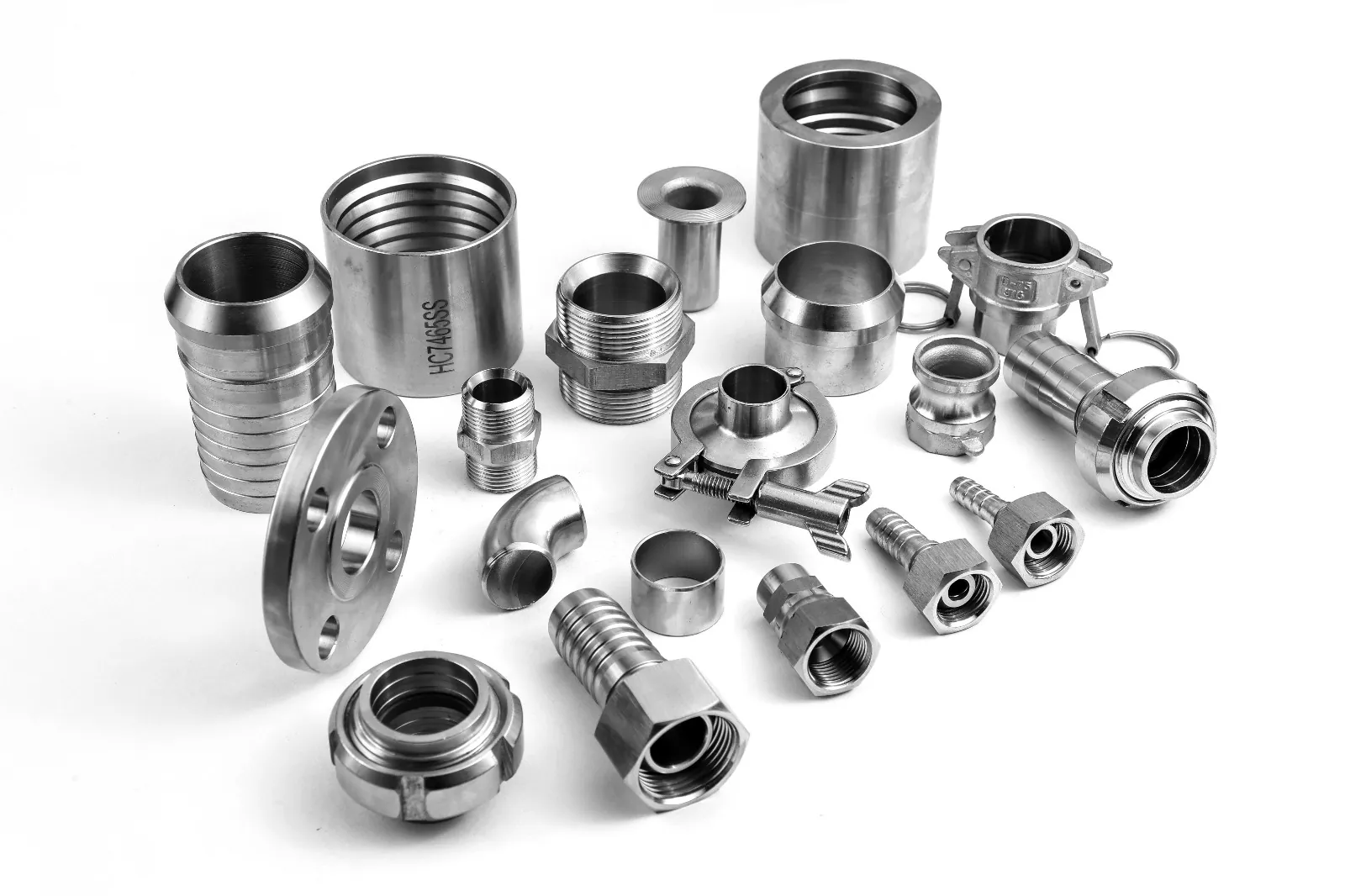

Stainless Steel Hydraulic Hose End Fittings

BSP • NPT • JIC • ORB • ORFS • Metric — male, female, any geometry

We machine stainless steel hose end fittings to any standard thread — BSP, BSPT, NPT, NPSM, JIC 37°, SAE ORB, ORFS and metric 24° cone — as male adaptors, female nuts, nipples, caps and 90° bends. Everything is cut on CNC for dimensional accuracy and a leak-free joint, and anything outside the standard range is made to your drawing.

Available in SS 304 / 304L / 316 / 316L / 321 / 321L, our fittings can be customized as per customer requirements to meet specific technical and commercial challenges. Every lot undergoes strict quality checks with Test Certificates provided for every supply.

Material

SS 304 / 304L / 316 / 316L / 321 / 321L

Manufacturing

CNC Machined

Thread Standards

BSP · BSPT · NPT · NPSM · JIC 37° · ORB · ORFS · Metric

Certification

ISO 9001:2015

Our Product Range

Complete range of stainless hydraulic hose end fittings, in every grade we supply hose in

Bend Set 90°

90-degree bend fittings for directional changes in hose routing. Ensures smooth flow with minimal pressure drop in tight spaces.

Adaptor

High-precision adaptors for connecting hoses to equipment with different thread types and sizes. Available in BSP, NPT & Metric.

Cap

End caps for sealing open hose ends, providing protection against contamination, leakage and environmental damage during storage.

Female Nut

CNC-machined female nuts for secure hose-to-fitting connections. Delivers reliable sealing performance under high pressure.

Nipple

Precision nipples for connecting hoses to valves, pumps and other hydraulic components. Perfect fit every time.

Male Fitting

Male threaded fittings available in all standard sizes for versatile hydraulic connections across applications.

Thread Standards We Cut

Any standard thread, in any of our grades — specify the sealing system and we machine to it

Thread standards, showing the governing standard, thread form, taper and sealing method for each.
Standard	Reference	Thread form	Taper	Seals on	Where it is used
BSPP — BSP parallel	ISO 228-1 · BS 2779	Whitworth 55°	Parallel	Bonded seal or O-ring at the face, or a 60° cone seat	The general European and Indian standard. Sealing is on the seat or washer, never the thread, so it can be undone and remade.
BSPT — BSP taper	ISO 7-1 · BS 21	Whitworth 55°	1:16 taper	Thread interference, with sealant or PTFE tape	Where a tapered joint is specified. The thread itself seals, so repeated remaking wears the joint.
NPT	ASME B1.20.1	60°	1:16 taper	Thread interference, with sealant or PTFE tape	The North American tapered standard. Not interchangeable with BSPT — the thread angle differs, 60° against 55°.
NPSM	ASME B1.20.1	60°	Parallel	Mechanical, on a 30° internal cone	The parallel counterpart to NPT, sealing on a seat rather than on the thread.
JIC 37°	SAE J514 · ISO 8434-2	UNF 60°	Parallel	37° flare, metal to metal	The most common hydraulic connection in North America. No elastomer in the joint, so it suits wide temperature swings.
SAE ORB — O-ring boss	SAE J1926 · ISO 11926	UNF 60°	Parallel (straight thread)	O-ring compressed against the boss face	Preferred over NPT for port connections on pumps and manifolds, because the seal does not depend on thread torque.
ORFS — O-ring face seal	SAE J1453 · ISO 8434-3	UNF 60°	Parallel	O-ring set in a flat face	The lowest-leakage option of the group, and the usual choice for high-vibration hydraulics.
Metric 24° cone	DIN 2353 · ISO 8434-1	Metric 60°	Parallel	24° cone, with or without an O-ring	The European tube-fitting standard, in light (L) and heavy (S) series for different pressures.

On UNF: UNF (ASME B1.1) is a thread form, not a sealing system. JIC, SAE ORB and ORFS all cut UNF threads and then seal three different ways — on a flare, on a boss face and on a flat face respectively. Specifying “UNF” alone does not identify a fitting.

Technical specification table. Pressures are at 20 °C; de-rate for temperature.
General Specifications
Material	SS 304 / 304L / 316 / 316L / 321 / 321L
Manufacturing Process	CNC Machining
Thread Standards	BSP, BSPT, NPT, NPSM, JIC 37°, SAE ORB, ORFS, Metric 24° cone
Size Range	1/4" to 4" (6 mm to 100 mm)
Surface Finish	Machined / Polished
Testing	100% Dimensional Inspection

Technical specification table. Pressures are at 20 °C; de-rate for temperature.
Product Types
Female Nut	Swivel nut for hose assembly connection
Nipple	Hose tail / serrated nipple for hose insertion
Cap	Sealing cap for open end protection
Bend Set 90°	90-degree elbow for direction changes
Adaptor	Thread adaptor for cross-standard connections
Male Fitting	Male threaded end for equipment connection
Custom Fittings	Made to drawing / customer specification

Features
Applications
Specifications

01. Features

Every fitting is cut from bar to the sealing standard you specify, in the same grade as the hose it terminates.

Eight sealing standards cut in house — BSP, BSPT, NPT, NPSM, JIC 37°, SAE ORB, ORFS and metric 24° cone
Tapered, cone-seat, flare, O-ring boss and face-seal geometries, so the joint seals the way the port expects
Supplied in the same grade as the hose — no galvanic mismatch at the joint
All six grades: SS 304 / 304L / 316 / 316L / 321 / 321L
CNC machined from bar, 1/4" to 4" (6 mm to 100 mm)
100% dimensional inspection, with test certificates for every lot
Non-standard threads and one-off geometries made to your drawing

02. Applications

SS hydraulic fittings are used across industries for secure hose connections.

Stainless steel corrugated hose assemblies
PTFE hose end connections
Hydraulic and pneumatic systems
Oil & gas pipelines and refineries
Chemical and pharmaceutical plants
Food and beverage processing
Steam and hot water systems
Fire protection sprinkler systems

03. Specifications

A complete hose end connection typically consists of three components working together:

Nut: The female swivel nut threads onto the mating connection point (valve, pump, or equipment)
Nipple: Inserted into the corrugated hose bore, the serrated nipple grips the inner surface
Cap: Compresses over the braid and hose, locking the assembly when the nut is tightened
Bend Set 90°: Used where a directional change is needed at the hose end
Adaptor: Converts between different thread standards (BSP to NPT, etc.)

Need Stainless Steel Hydraulic Fittings? Get a Quote Today

All standard sizes in stock. Custom fittings manufactured to your specifications. Test Certificates included.
