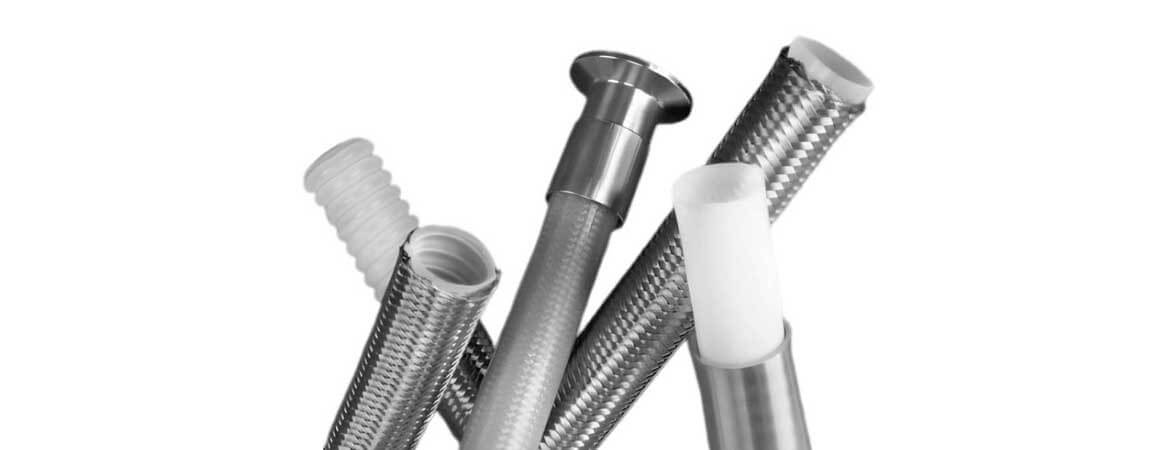

Smooth bore & corrugated PTFE hoses with stainless steel braiding. Engineered for chemical-resistant, high-temperature, and food-grade applications from -65°C to +260°C.
Smooth Bore • Corrugated • SS Braided
PTFE hoses are used in heavy-duty environments where high temperature, high pressure, chemical resistance and elastic qualities are required. The PTFE inner tube provides an ultra-smooth, non-stick surface with excellent chemical inertness.
Available in smooth bore and corrugated configurations with stainless steel braiding for pressure containment. Suitable for conveying aggressive chemicals, steam, oils, and food-grade media from -65°C to +260°C.
-65°C to +260°C
Virgin PTFE
SS 304 Wire Braid
1/8" to 2" (3.5 mm - 50 mm)
Choose the right PTFE hose for your application
Smooth internal bore provides unrestricted flow with zero dead zones. Ideal for applications requiring absolute cleanliness, easy cleaning, and minimal flow resistance.
Convoluted (corrugated) inner tube provides superior flexibility and tighter bend radius. Best suited for applications requiring frequent flexing and compact routing.
| Property | Smooth Bore | Corrugated |
|---|---|---|
| Internal Surface | Smooth - no dead zones | Convoluted profile |
| Flow Rate | Maximum (unrestricted) | Slightly reduced |
| Flexibility | Good | Excellent |
| Bend Radius | Standard | Tighter bend radius |
| Cleanability | Excellent - easy CIP/SIP | Good |
| Best For | Pharma, Food, Chemical, Steam | Hydraulic, Pneumatic, Industrial |
| Pressure Rating | Standard | Higher |
| Temperature Range | -65°C to +260°C | -65°C to +260°C |

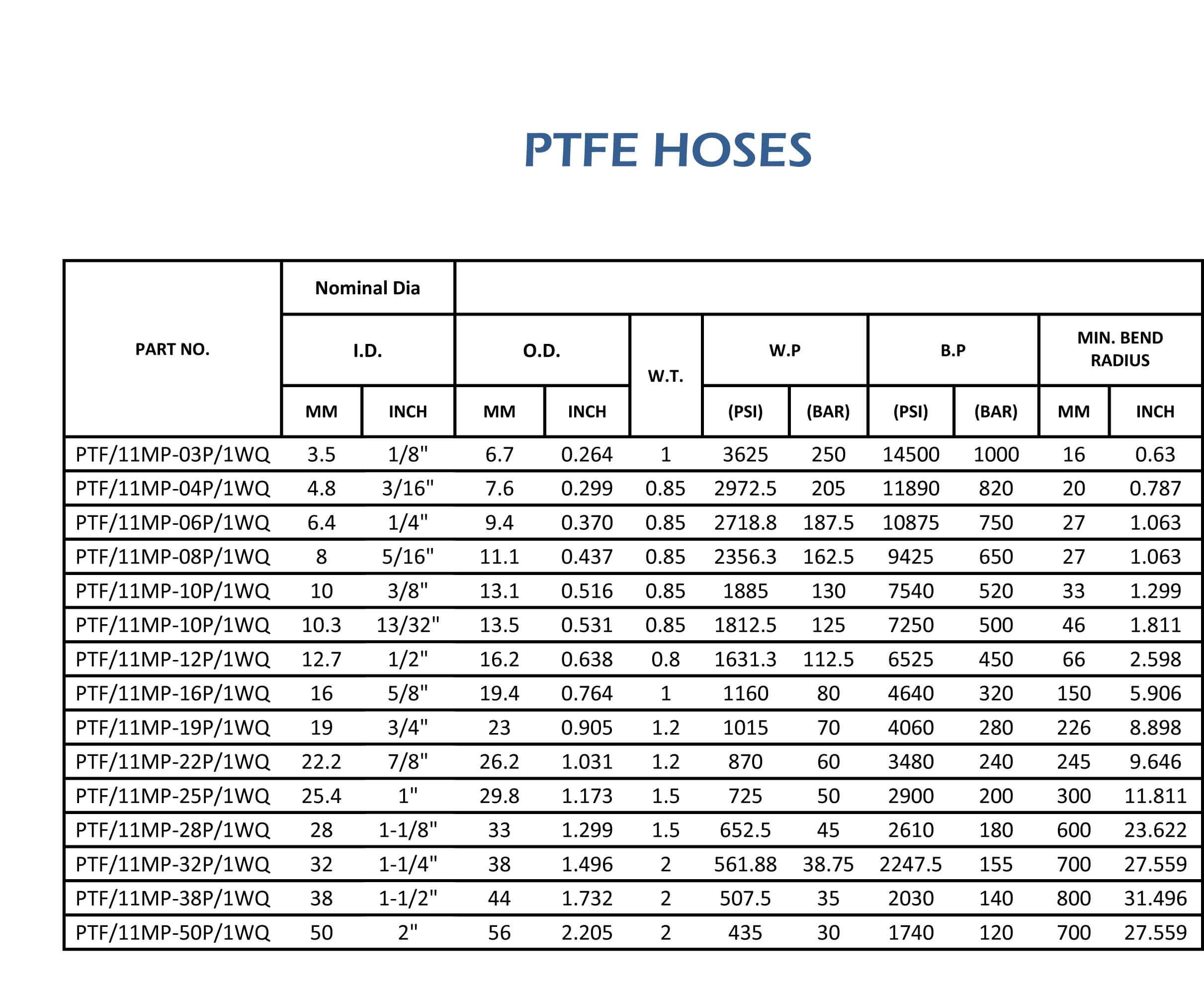

Smooth bore PTFE hose with single SS 304 wire braid
| Part No. | I.D.mm | I.D.inch | O.D.mm | O.D.inch | W.T.mm | W.P.PSI | W.P.BAR | B.P.PSI | B.P.BAR | Min Bend R.mm | Min Bend R.inch |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PTF/11MP-03P/1WQ | 3.5 | 1/8" | 6.7 | 0.264 | 1 | 3625 | 250 | 14500 | 1000 | 16 | 0.63 |
| PTF/11MP-04P/1WQ | 4.8 | 3/16" | 7.6 | 0.299 | 0.85 | 2972.5 | 205 | 11890 | 820 | 20 | 0.787 |
| PTF/11MP-06P/1WQ | 6.4 | 1/4" | 9.4 | 0.370 | 0.85 | 2718.8 | 187.5 | 10875 | 750 | 27 | 1.063 |
| PTF/11MP-08P/1WQ | 8 | 5/16" | 11.1 | 0.437 | 0.85 | 2356.3 | 162.5 | 9425 | 650 | 27 | 1.063 |
| PTF/11MP-10P/1WQ | 10 | 3/8" | 13.1 | 0.516 | 0.85 | 1885 | 130 | 7540 | 520 | 33 | 1.299 |
| PTF/11MP-12P/1WQ | 12.7 | 1/2" | 16.2 | 0.638 | 0.8 | 1631.3 | 112.5 | 6525 | 450 | 66 | 2.598 |
| PTF/11MP-16P/1WQ | 16 | 5/8" | 19.4 | 0.764 | 1 | 1160 | 80 | 4640 | 320 | 150 | 5.906 |
| PTF/11MP-19P/1WQ | 19 | 3/4" | 23 | 0.905 | 1.2 | 1015 | 70 | 4060 | 280 | 226 | 8.898 |
| PTF/11MP-22P/1WQ | 22.2 | 7/8" | 26.2 | 1.031 | 1.2 | 870 | 60 | 3480 | 240 | 245 | 9.646 |
| PTF/11MP-25P/1WQ | 25.4 | 1" | 29.8 | 1.173 | 1.5 | 725 | 50 | 2900 | 200 | 300 | 11.811 |
| PTF/11MP-28P/1WQ | 28 | 1-1/8" | 33 | 1.299 | 1.5 | 652.5 | 45 | 2610 | 180 | 600 | 23.622 |
| PTF/11MP-32P/1WQ | 32 | 1-1/4" | 38 | 1.496 | 2 | 561.88 | 38.75 | 2247.5 | 155 | 700 | 27.559 |
| PTF/11MP-38P/1WQ | 38 | 1-1/2" | 44 | 1.732 | 2 | 507.5 | 35 | 2030 | 140 | 800 | 31.496 |
| PTF/11MP-50P/1WQ | 50 | 2" | 56 | 2.205 | 2 | 435 | 30 | 1740 | 120 | 700 | 27.559 |
W.P. = Working Pressure | B.P. = Burst Pressure | W.T. = Wall Thickness (mm). Custom sizes and configurations available on request.
PTFE hoses deliver unmatched performance in the most demanding environments.
PTFE hoses serve critical roles across industries.
PTFE hoses can be assembled with our SS hydraulic fittings for complete hose assemblies.
Smooth bore & corrugated PTFE hoses in all sizes. Complete assemblies with SS fittings available.
Common questions about PTFE hoses
Operating Temperature Range: -65°C (cryogenic) to +260°C (high-temperature). PTFE maintains full chemical resistance and mechanical properties across this complete temperature range, making our hoses suitable for both ultra-cold and hot-service applications.
Smooth bore PTFE hoses have a flat internal surface for maximum flow and easy cleaning — ideal for food, pharma, and chemical applications. Corrugated PTFE hoses have a convoluted inner tube for superior flexibility and tighter bend radius — best for hydraulic and industrial applications.
Yes, our smooth bore PTFE hoses are FDA compliant and safe for food-grade and pharmaceutical applications. The virgin PTFE material is non-toxic, non-contaminating, and approved for direct contact with consumables.
We manufacture PTFE hoses from 1/8" (3.5 mm) to 2" (50 mm) bore diameter. Custom sizes and lengths are available on request. All sizes are kept in stock for quick delivery from our Jhajjar facility.
PTFE is inert to virtually all chemicals, acids, bases, and solvents. It can safely convey aggressive media including sulfuric acid, hydrochloric acid, acetone, and caustic soda. Only molten alkali metals and fluorine at high temperatures can attack PTFE.
Yes, PTFE hoses are excellent for steam transfer. With a temperature rating up to +260°C, they comfortably handle saturated and superheated steam. The SS 304 braid provides pressure containment for steam lines.
