Threaded · Flanged · Custom Ends

Stainless Steel Hose Assemblies

Complete corrugated and braided hose assemblies with custom end connections — flanges, threaded fittings, camlocks and more. Every assembly is 100% pressure tested before dispatch.

Request a Quote Technical Details

ISO 9001:2015 Certified Exporting worldwide Custom lengths & ends

Stainless steel braided hose assemblies with flanged, threaded and union end fittings

Stainless Steel Hose Assemblies

Threaded • Flanged • Customized End Connections

For final application, stainless steel corrugated hose is connected with end connections to form a complete hose assembly. Following is our range of end connections as per user demand:

Flanged end connections (Class-150, Class-300, Table-D etc.)
Threaded fittings (BSP, BSPT, NPT etc.)
Camlock and quick release couplings
Long pipe ends, elbow reducers etc.
Various customized fittings as per customer needs

All hoses and assemblies are 100% pressure tested and leakproof before dispatch.

Material

SS 304 / 304L / 316 / 316L / 321 / 321L

Size Range

6mm (1/4") to 300mm (12")

Temperature

-270°C to +700°C

SS 321 required above 425°C

Testing

100% Hydrostatic Tested

Our Range

Three Categories of Hose Assembly

Every assembly is built to your specification and supplied 100% pressure tested and leakproof.

Threaded stainless steel hose assemblies

Threaded Assemblies

We offer threaded assemblies in BSP, NPT, UNF, Metric and more, with thread sizes up to 100mm.

BSP · NPT · UNF · Metric

Flanged stainless steel braided hose assembly

Flanged Assemblies

We offer flanged assemblies in ASA / Class 150 and 300, and B.Std. Table D, E and F.

ASA Class 150 & 300 · B.Std Table D, E, F

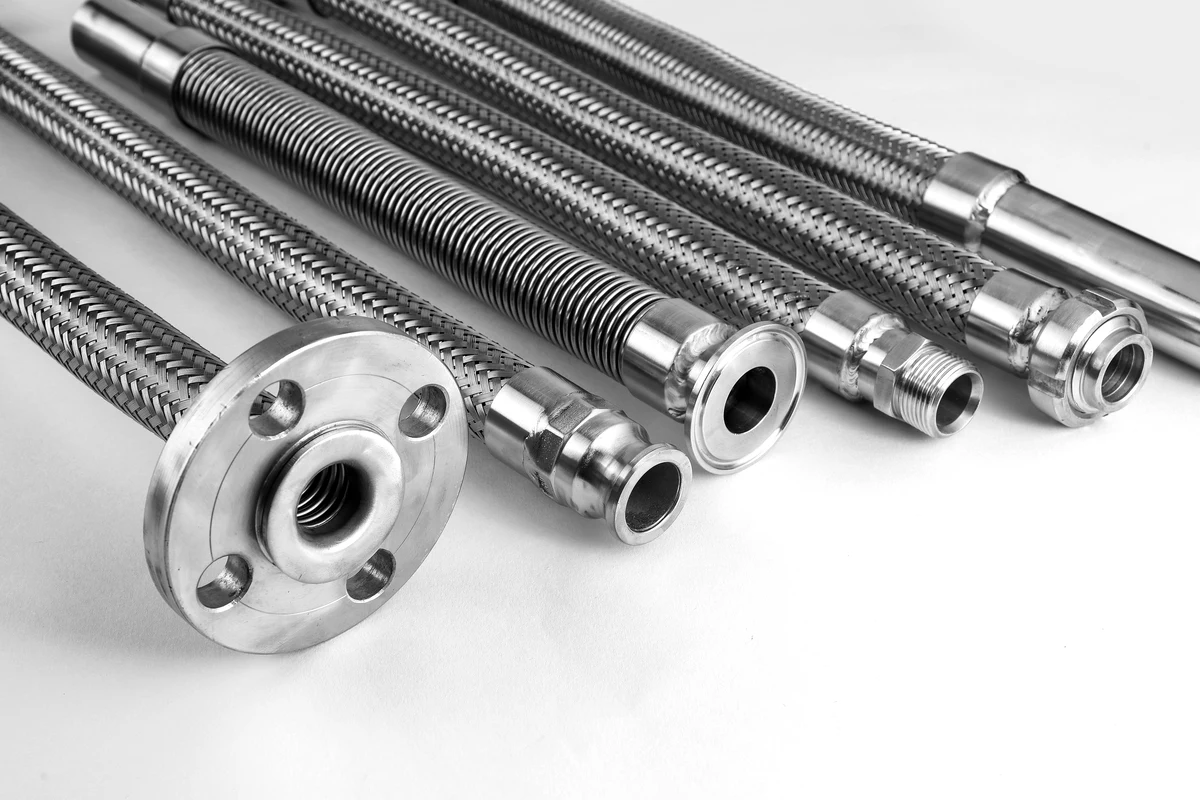

Stainless steel hose assemblies with flanged, tri-clamp, threaded and hex end fittings made to customer drawings

Customized Assemblies

We offer our customers various types of special fittings, manufactured as per their requirements.

Built to your drawing

Not sure which suits your line? Send us your size, pressure and media requirement and our engineers will specify it for you.

Features
Applications
Specifications

01. Features

Every assembly leaves our works complete, tested and ready to bolt straight into your line.

Hose and end fittings supplied as one ready-to-install unit
Fittings welded in matching grade to the hose — no galvanic mismatch
Cut to your exact centre-to-centre length
Braided for pressure containment and length control
Threaded, flanged or fully customised to your drawing

02. Applications

Hose assemblies absorb movement, vibration and misalignment wherever rigid pipework cannot.

Pump and compressor connections for vibration isolation
Steam, hot water and thermal fluid transfer lines
Chemical and pharmaceutical process pipework
Refinery, offshore and gas handling systems
Cryogenic transfer and LPG / LNG service

03. Specifications

Manufactured and certified to meet stringent industrial standards.

Materials: SS 304, SS 316, SS 321 hose with matching grade fittings
Nominal bore: 6mm (1/4") to 300mm (12")
Temperature range: -270°C to +700°C (grade dependent — SS 321 required above 425°C)
Lengths: Custom cut to order, from 150mm to 10+ meters
100% hydrostatically tested at 1.5x working pressure before dispatch
Material test certificates (MTC) supplied with every order

Need Hose Assemblies? Get a Quote Today

Custom hose assemblies in any size, length, and end connection. 100% tested. Fast delivery from Jhajjar.
