STAINLESS STEEL CORRUGATED HOSE - SERIES 11HF

Stainless Steel Corrugated Hose

Series 11HF • Hydroformed • Standard Pitch

HF — Hydroformed hoses are manufactured using hydraulic pressure to form the corrugations. HF is the route to the larger bores, 40mm to 300mm, and works to 55 bar with a double braid. Working pressure falls as the bore rises, so check the table for your part number.

Series 11HF is the standard pitch hydroformed hose — designed for larger bore sizes (40mm–300mm), for steam, chemical, boiler, pneumatic, railway, and water/liquid transfer applications.

Material Grades

SS 304 / 304L / 316 / 316L / 321 / 321L

Core, braid and fittings

Temperature Range

-270°C to +700°C

SS 321 required above 425°C

Bore Range

1.5" to 12" (40–300 mm)

Braid Options

Single / Double SS Wire

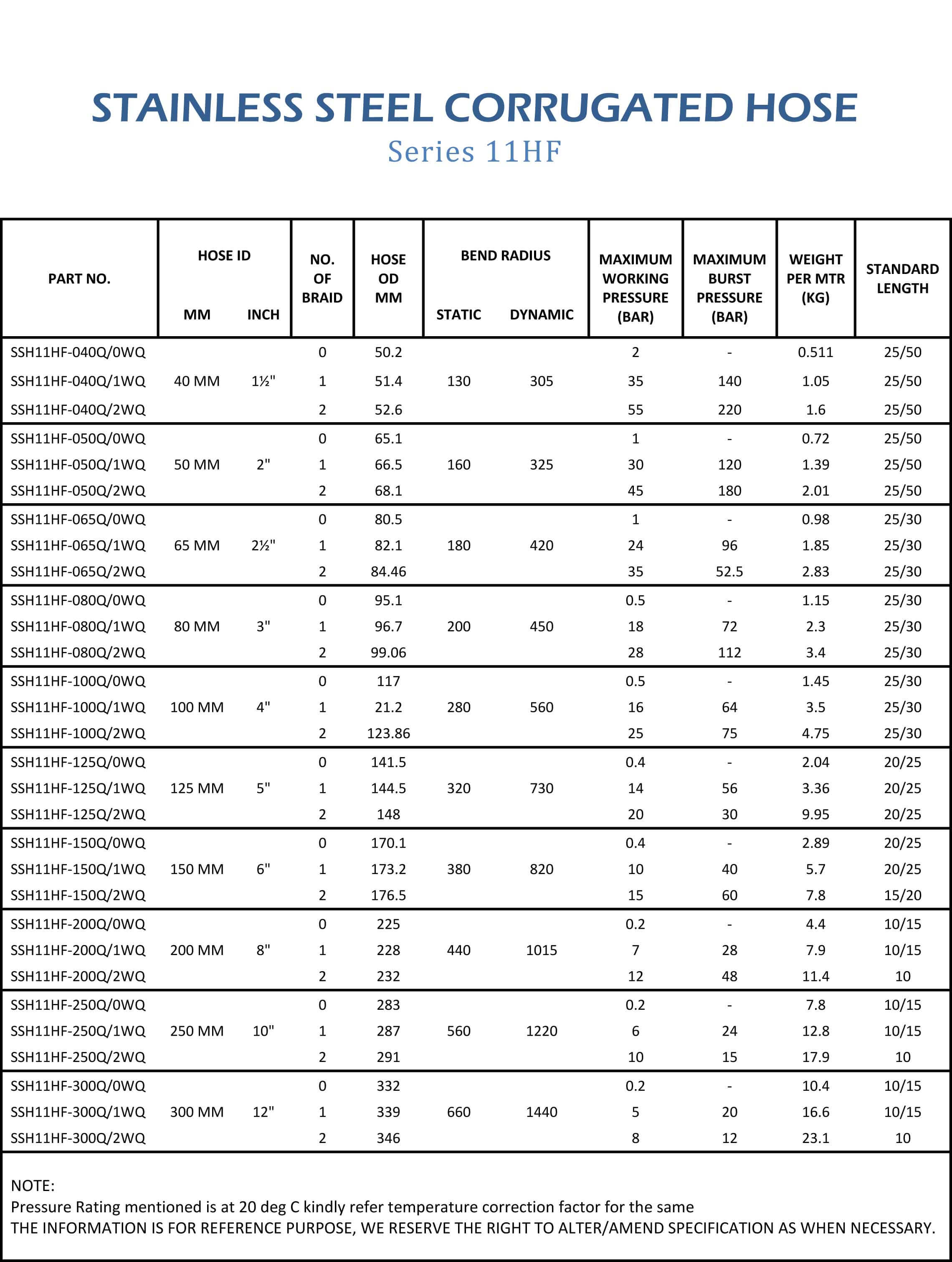

Series 11HF — Technical Sheet

Hydroformed | Standard Pitch | 0, 1 & 2 Braid Options | Sizes 40mm–300mm

Technical specification — part number, bore, braid layers, outside diameter, bend radius, working and burst pressure, weight and standard length. Pressures are at 20 °C; de-rate for temperature.
Part No.Hose IDmm · inchBraidsHose ODmmBend R.Static (mm)Bend R.Dynamic (mm)Max WPbarBurst P.barWeightkg/mStd. Lengthm
SSH11HF-040Q/0WQ 40 mm1½" 0 50.2 130 305 2 — 0.511 25/50
SSH11HF-040Q/1WQ 1 51.4 35 140 1.05 25/50
SSH11HF-040Q/2WQ 2 52.6 55 220 1.6 25/50
SSH11HF-050Q/0WQ 50 mm2" 0 65.1 160 325 1 — 0.72 25/50
SSH11HF-050Q/1WQ 1 66.5 30 120 1.39 25/50
SSH11HF-050Q/2WQ 2 68.1 45 180 2.01 25/50
SSH11HF-065Q/0WQ 65 mm2½" 0 80.5 180 420 1 — 0.98 25/30
SSH11HF-065Q/1WQ 1 82.1 24 96 1.85 25/30
SSH11HF-065Q/2WQ 2 84.46 35 140 2.83 25/30
SSH11HF-080Q/0WQ 80 mm3" 0 95.1 200 450 0.5 — 1.15 25/30
SSH11HF-080Q/1WQ 1 96.7 18 72 2.3 25/30
SSH11HF-080Q/2WQ 2 99.06 28 112 3.4 25/30
SSH11HF-100Q/0WQ 100 mm4" 0 117 280 560 0.5 — 1.45 25/30
SSH11HF-100Q/1WQ 1 121.2 16 64 3.5 25/30
SSH11HF-100Q/2WQ 2 123.86 25 100 4.75 25/30
SSH11HF-125Q/0WQ 125 mm5" 0 141.5 320 730 0.4 — 2.04 20/25
SSH11HF-125Q/1WQ 1 144.5 14 56 3.36 20/25
SSH11HF-125Q/2WQ 2 148 20 80 9.95 20/25
SSH11HF-150Q/0WQ 150 mm6" 0 170.1 380 820 0.4 — 2.89 20/25
SSH11HF-150Q/1WQ 1 173.2 10 40 5.7 20/25
SSH11HF-150Q/2WQ 2 176.5 15 60 7.8 15/20
SSH11HF-200Q/0WQ 200 mm8" 0 225 440 1015 0.2 — 4.4 10/15
SSH11HF-200Q/1WQ 1 228 7 28 7.9 10/15
SSH11HF-200Q/2WQ 2 232 12 48 11.4 10
SSH11HF-250Q/0WQ 250 mm10" 0 283 560 1220 0.2 — 7.8 10/15
SSH11HF-250Q/1WQ 1 287 6 24 12.8 10/15
SSH11HF-250Q/2WQ 2 291 10 40 17.9 10
SSH11HF-300Q/0WQ 300 mm12" 0 332 660 1440 0.2 — 10.4 10/15
SSH11HF-300Q/1WQ 1 339 5 20 16.6 10/15
SSH11HF-300Q/2WQ 2 346 8 32 23.1 10

NOTE:
Pressure rating mentioned is at 20°C — kindly refer to the temperature correction factor for other temperatures.
Packaging: Roll, Reel, Wooden case, Pallet
THE INFORMATION IS FOR REFERENCE PURPOSE. WE RESERVE THE RIGHT TO ALTER/AMEND SPECIFICATION AS AND WHEN NECESSARY.

Download PDF Datasheet

Need Series 11HF Hoses? Get a Quote Today

Standard pitch hydroformed corrugated hoses in SS 304/304L/316/316L/321/321L. Custom lengths and assemblies available.
