STAINLESS STEEL CORRUGATED HOSE - SERIES 13MF

Stainless Steel Corrugated Hose

Series 13MF • Mechanically Formed • Extra Close Pitch

MF — Mechanically Formed hoses are manufactured by mechanically rolling and forming the corrugations into the metal tube using precision tooling. This process produces uniform, consistent corrugation profiles ideal for standard pressure and flexibility applications.

Series 13MF is the extra close pitch mechanically formed hose — unbraided, with the tightest corrugation spacing for the smallest static bend radius. Use it for static, low-pressure routing in confined spaces, within the table rating (10 bar at 1/4" down to 0.5 bar at 2"). It is not for dynamic load or frequent bending; for a line that moves, use Series 11 or 12 at the dynamic bend radius.

Material Grades

SS 304 / 304L / 316 / 316L / 321 / 321L

Core, braid and fittings

Temperature Range

-270°C to +700°C

SS 321 required above 425°C

Bore Range

1/4" to 2" (6–50 mm)

Braid Options

Unbraided (0WQ)

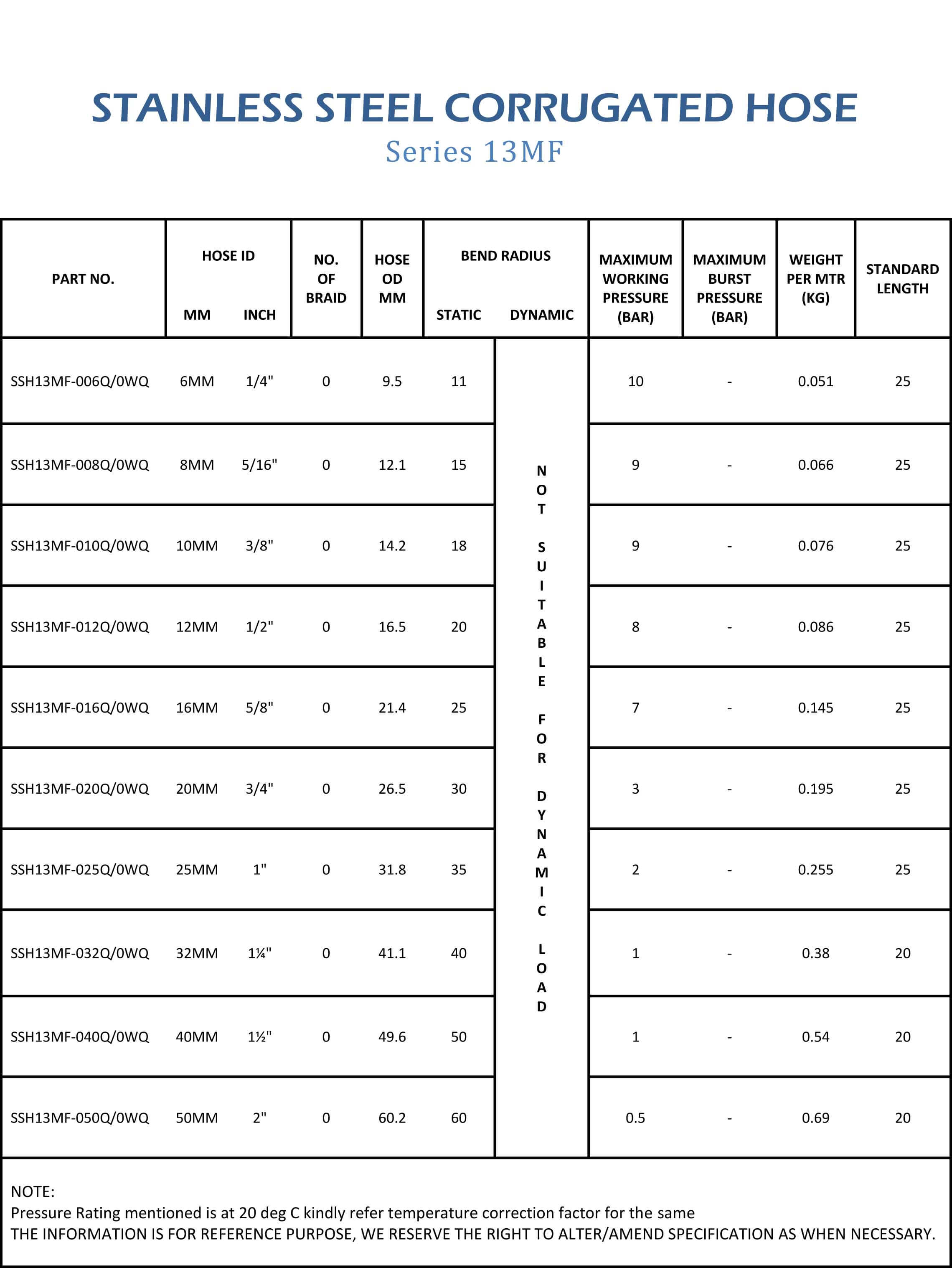

Series 13MF — Technical Sheet

Mechanically Formed | Extra Close Pitch | Unbraided | Sizes 6mm–50mm

Technical specification — part number, bore, braid layers, outside diameter, bend radius, working and burst pressure, weight and standard length. Pressures are at 20 °C; de-rate for temperature.
Part No.Hose IDmm · inchBraidsHose ODmmBend R.Static (mm)Bend R.Dynamic (mm)Max WPbarBurst P.barWeightkg/mStd. Lengthm
SSH13MF-006Q/0WQ 6 mm1/4" 0 9.5 11 Not for dynamic 10 — 0.051 25
SSH13MF-008Q/0WQ 8 mm5/16" 0 12.1 15 Not for dynamic 9 — 0.066 25
SSH13MF-010Q/0WQ 10 mm3/8" 0 14.2 18 Not for dynamic 9 — 0.076 25
SSH13MF-012Q/0WQ 12 mm1/2" 0 16.5 20 Not for dynamic 8 — 0.086 25
SSH13MF-016Q/0WQ 16 mm5/8" 0 21.4 25 Not for dynamic 7 — 0.145 25
SSH13MF-020Q/0WQ 20 mm3/4" 0 26.5 30 Not for dynamic 3 — 0.195 25
SSH13MF-025Q/0WQ 25 mm1" 0 31.8 35 Not for dynamic 2 — 0.255 25
SSH13MF-032Q/0WQ 32 mm1¼" 0 41.1 40 Not for dynamic 1 — 0.38 20
SSH13MF-040Q/0WQ 40 mm1½" 0 49.6 50 Not for dynamic 1 — 0.54 20
SSH13MF-050Q/0WQ 50 mm2" 0 60.2 60 Not for dynamic 0.5 — 0.69 20

* Series 13MF (extra close pitch, unbraided) is not suitable for dynamic load.

NOTE:
Pressure rating mentioned is at 20°C — kindly refer to the temperature correction factor for other temperatures.
Packaging: Roll, Reel, Wooden case, Pallet
THE INFORMATION IS FOR REFERENCE PURPOSE. WE RESERVE THE RIGHT TO ALTER/AMEND SPECIFICATION AS AND WHEN NECESSARY.

Download PDF Datasheet

Need Series 13MF Hoses? Get a Quote Today

Extra close pitch mechanically formed corrugated hoses in SS 304/304L/316/316L/321/321L. Custom lengths and assemblies available.
